During shipbuilding, vertical butt welds on hull plates are welded in the dock process.

Currently, the High Efficiency Graft Welding (EGW) method is the standard for vertical welding; however, equipment capable of welding without rails is required to eliminate the hassle of installing rails.

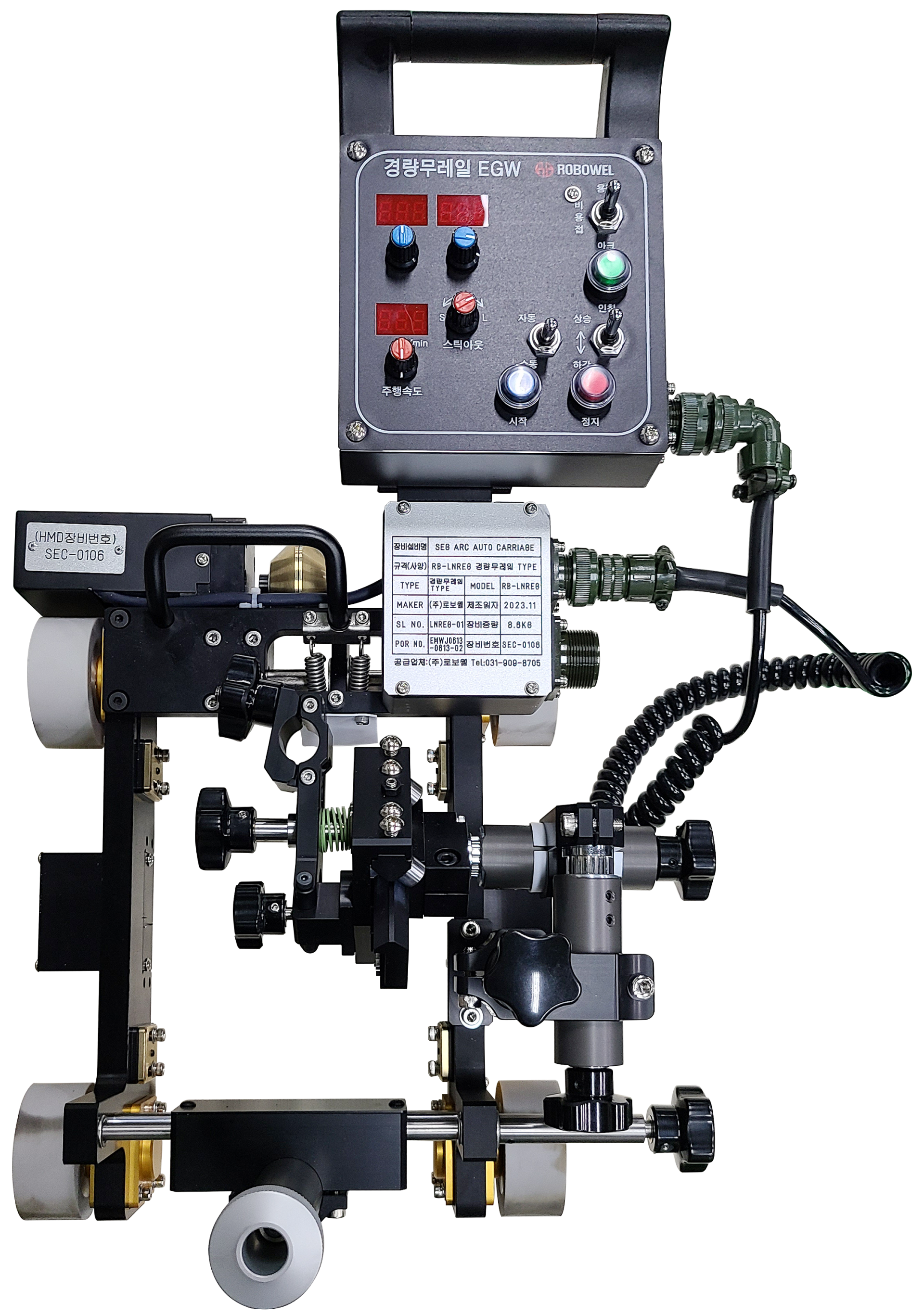

This equipment performs EGW welding by having guide rollers track the groove without rails. It contributes not only to the stabilization and improvement of welding quality but also to the reduction of labor intensity.

Digital control enhances precision, provides control accuracy and agility, and facilitates the management of welding-related data. (Lightweight version: February 2023)

B. Equipment Configuration

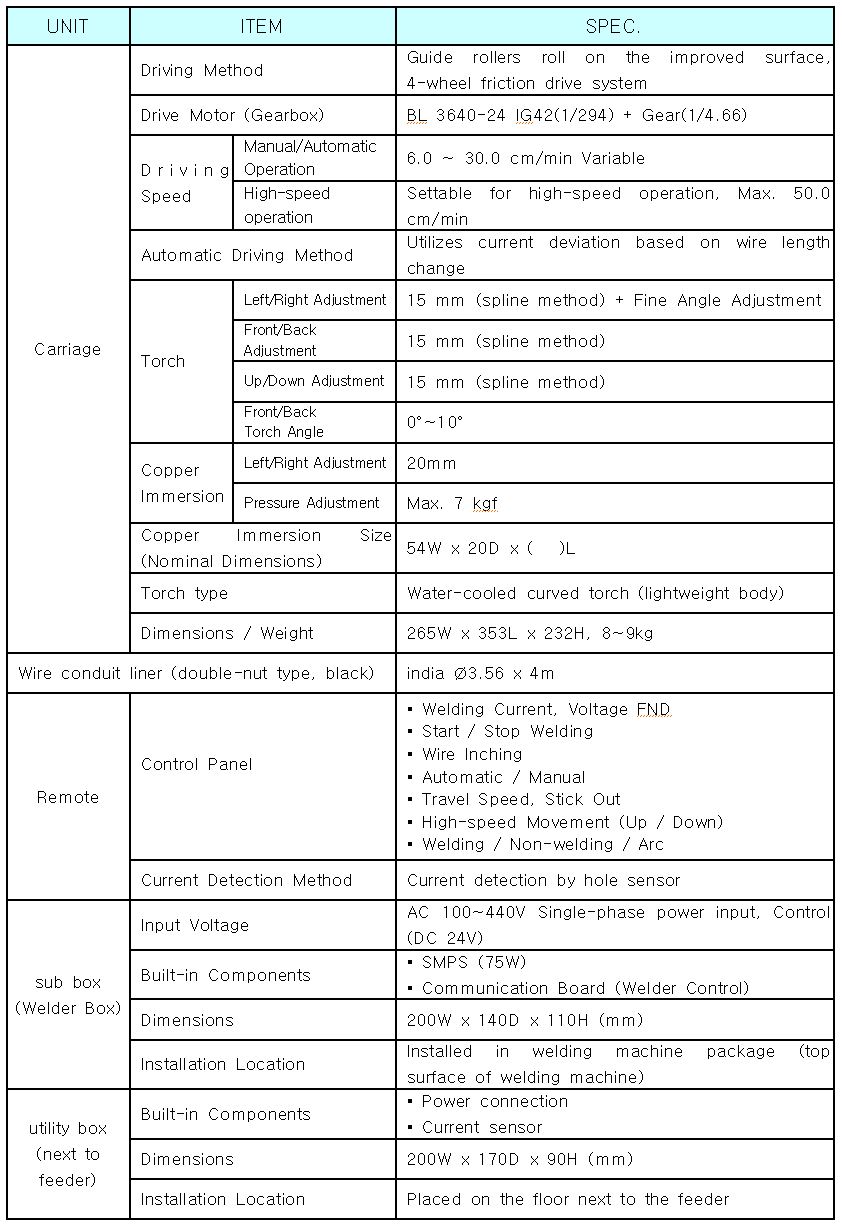

1) Welding Equipment Main Body: 1 Set

- Traveling Mechanism: Silicone rubber wheel drive

- Torch Adjustment Slide: 1 Set

- Copper Dipping Adjustment Section: 1 Set

- Permanent Magnet Section: 1 Set each for Left and Right

- Current Sensor Section: 1 Set (Utility Box)

- CONTROLLER (Remote): 1 Set

- Intermediate Box (Welder control and communication with remote): 1 Set

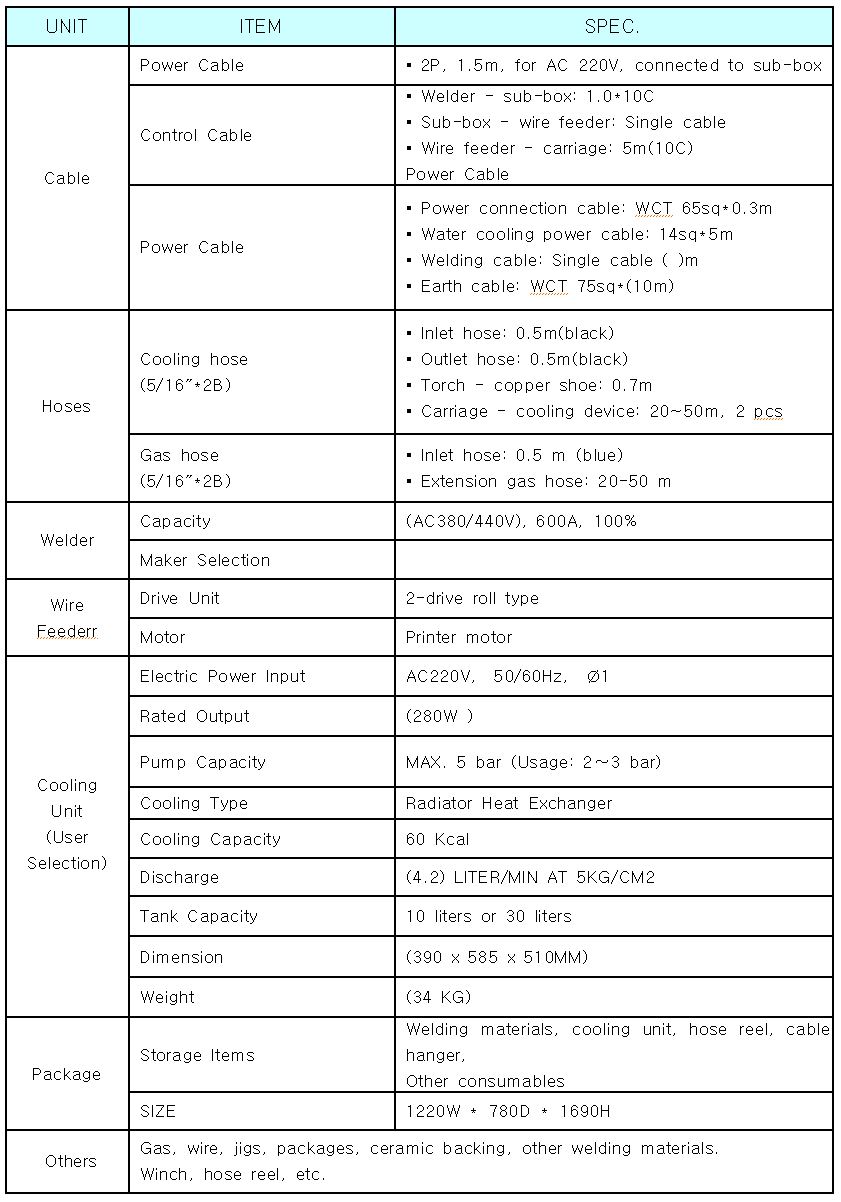

- Cables: Welder↔Intermediate Box, Intermediate Box↔Feeder, Feeder↔Carriage, etc. 1 Set

2) Welder: 1 Set (User Determined)

- POWER SOURCE (600A Class) - 1 Set

- Wire Feeder - 1 Set

- Special Lightweight Cooling Torch - 1 Set

- Single Cable - 1 Set (60Sq * 15~50m)

3) Auxiliary Equipment

- Storage Box (Welder, Cooling Unit, Cable, Carriage) - 1 set

- Safety Hook for Fall Prevention – 1 set (User)

- Cooling Unit & Cooling Hose - 1 set

- Gas Line (Hose) - 1 set

- Other Jigs - 1 set (User must handle)
